| KBK rail equipment |

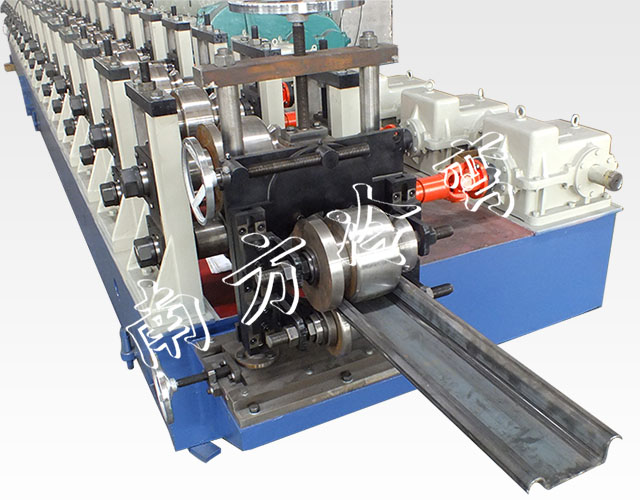

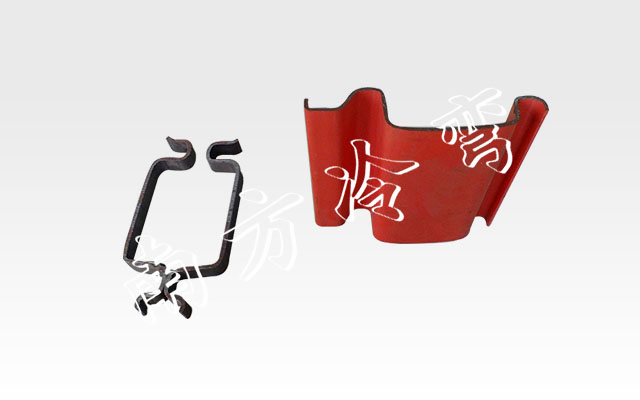

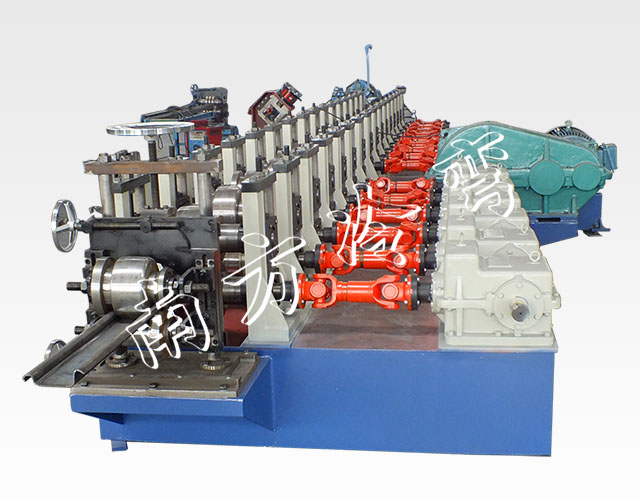

   1、equipment configuration and use： 该The equipment consists of tensioning type decoiler, forming machine, hydraulic shear (or flying saw cutting) - finished goods receiving station, the production of 4S1, 4S3, KBK Ⅰ, KBK Ⅱ orbit. 2、the main technical parameters： Rolling material thickness: 3 - 5mm. Molding speed: 8 - 12 m / min. Forming pass: 15 - 20. The host power: 55 - 75KW. Transmission: gear box. |
